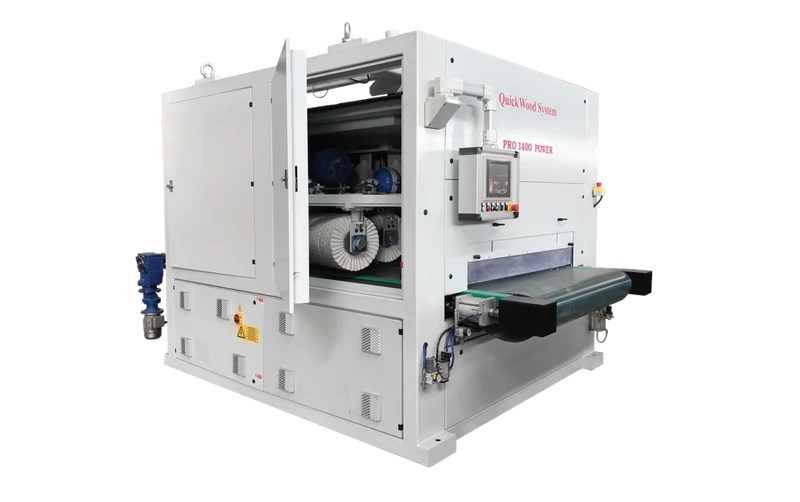

PRO POWER Automatic Brush Sander

SPECIALIZED HEAVY DUTY ROTARY FOR BUFFING

Download Brochure

Automatic machine for polishing flat panels by distributing abrasive paste with cotton mops, in order to eliminate any impurities or imperfections on the lacquered surface.



Applications

  • High Gloss Polishing of Panels
  • Rustic assembled panels when the machine is fitted with Rustic brushes



Features

  • Rotating carousel equipped with 4 or 8 cotton brushes of...
Size Guide

SPECIALIZED HEAVY DUTY ROTARY FOR BUFFING

Download Brochure

Automatic machine for polishing flat panels by distributing abrasive paste with cotton mops, in order to eliminate any impurities or imperfections on the lacquered surface.



Applications

  • High Gloss Polishing of Panels
  • Rustic assembled panels when the machine is fitted with Rustic brushes



Features

  • Rotating carousel equipped with 4 or 8 cotton brushes of 400 mm diameter
  • Central control Unit with PLC for working pressure monitoring and programming, carousel speed, brush speed and feed speed
  • Control Panel and 12 "Colour touch screen display
  • Vacuum conveyor belt with electronic control
  • Pneumatic tension and centering of the conveyor belt
  • Optional extra request of conveyor cleaning system
  • Automatic distribution of the abrasive paste for high gloss polishing
  • Control of all motors via inverter for speed control
  • Possibility of use of a horizontal brush 1400mm wide positioned at infeed or outfeed



Advantages

  • Uniformity of polishing on the entire surface of the panel
  • High production capacity (between 1 and 2 m²/min) as continuous machine
  • Reduced consumption of abrasive paste since the application of the same is controlled by PLC and distributed directly on the brush and not on the surface of the workpiece
  • Considerable reduction of manual work, used in polishing
